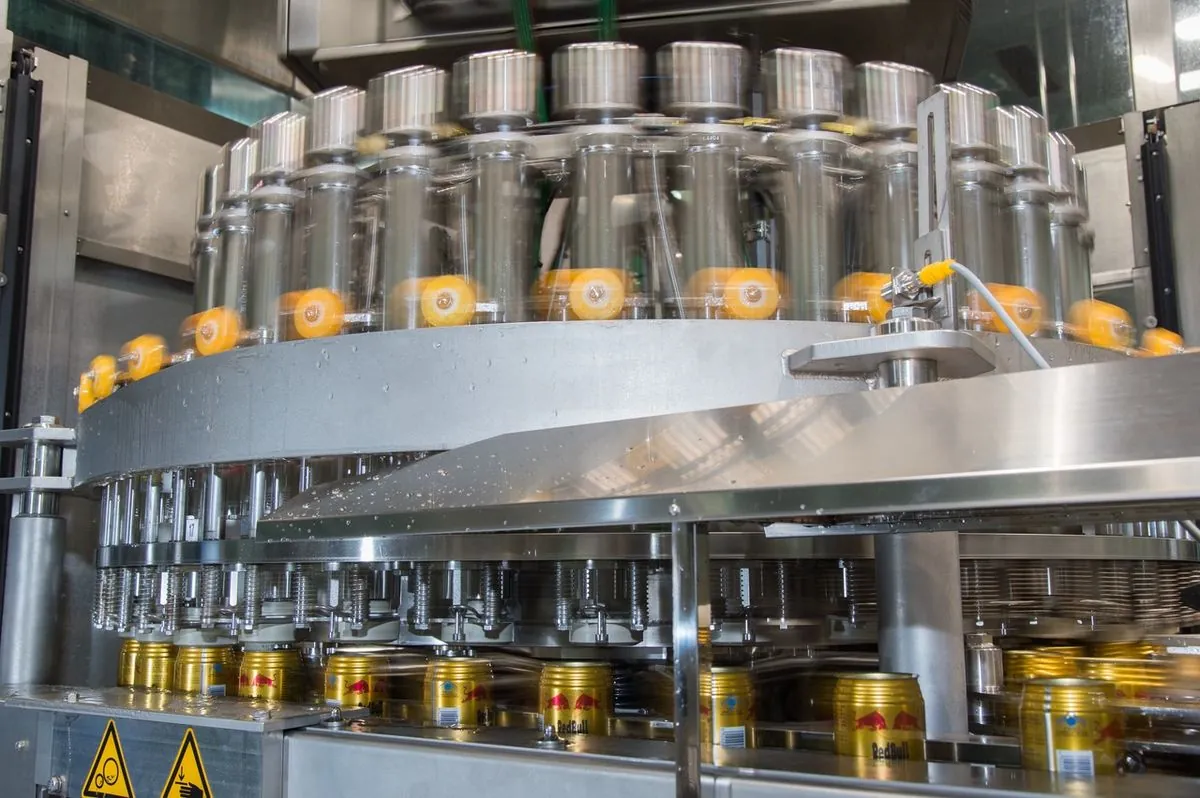

FREEION Can Filling Machine is engineered for high-speed, hygienic, and reliable filling of carbonated soft drinks, energy drinks, sparkling water, beer, and other beverages in aluminium cans.
Built with advanced counter-pressure filling technology, the machine ensures maximum CO₂ retention, low foaming, precise fill accuracy, and superior product quality even at high production speeds. The compact monoblock system integrates can rinsing, filling, and seaming into one efficient solution for modern beverage production plants.
Designed for continuous operation, FREEION Can Filling Machines deliver excellent performance, hygienic processing, energy efficiency, and low total cost of ownership.
| Parameter | Specification |
|---|---|
| Machine Type | Can Filling & Seaming Machine |
| Filling Method | Counter Pressure Filling |
| Application | Carbonated Soft Drinks, Energy Drinks, Sparkling Water |
| Container Type | Aluminium Cans |
| Can Size Range | 150 ml – 500 ml |
| Filling Valves | 12 – 60 |
| Seaming Heads | 1 – 10 |
| Production Capacity | Up to 36,000 CPH |
| Product Contact Parts | SS AISI 316L |
| Machine Structure | SS304 |
| Control System | PLC with Touch Screen HMI |
| CIP Compatibility | Yes |
| Power Supply | 415 V / 50 Hz / 3 Phase |
| Machine Operation | Fully Automatic |
| Maintenance | Low |
| No. | Model (R/F/C) | 200 ml | 500 ml | 1000 ml | 2000 ml |
|---|---|---|---|---|---|
| 01 | 6/6/3 | 40 BPM | 30 BPM | 25 BPM | 12 BPM |
| 02 | 8/8/4 | 60 BPM | 50 BPM | 35 BPM | 18 BPM |
| 03 | 10/10/5 | 75 BPM | 65 BPM | 45 BPM | 22 BPM |
| 04 | 12/12/6 | 95 BPM | 75 BPM | 55 BPM | 28 BPM |
| 05 | 18/18/6 | 140 BPM | 120 BPM | 85 BPM | 42 BPM |
| 06 | 24/24/8 | 190 BPM | 170 BPM | 115 BPM | 58 BPM |
| 07 | 30/30/10 | 240 BPM | 190 BPM | 145 BPM | 72 BPM |
| 08 | 40/40/10 | 300 BPM | 240 BPM | 190 BPM | 95 BPM |
FREEION can fillers are specially designed for carbonated beverage applications.
Features:
Benefits:
The machine is designed according to modern beverage industry hygiene standards.
Features:
Benefits:
FREEION Can Filling Machines are designed for reliable continuous production.
Features:
Benefits:
The integrated seaming system ensures secure and leak-proof can sealing.
Features:
Benefits:
FREEION machines support different can sizes and beverage applications.
Features:
Benefits:
Designed for simple operation and operator convenience.
Features:
Benefits:
FREEION Can Filling Machines are designed to reduce utility consumption and operating cost.
Energy Saving:
Maintenance Saving:
Water & Product Saving:
Empty Bottles Enter the Rinsing Section Where They Are Cleaned Using Treated Water. Bottles Are Then Transferred to the Filling Section Where Juice is Filled Accurately Under Hygienic Conditions.After Filling, Bottles Move Automatically to the Capping Section for Secure Sealing Before Transferring to Labelling, Shrink Wrapping, Carton Packing, and Final Dispatch.
| Model (F/S) | 250 ml | 330 ml | 500 ml |
|---|---|---|---|
| 12/1 | 80 BPM | 70 BPM | 60 BPM |
| 18/4 | 150 BPM | 130 BPM | 100 BPM |
| 24/4 | 220 BPM | 180 BPM | 150 BPM |
| 36/6 | 320 BPM | 280 BPM | 220 BPM |
| 48/8 | 450 BPM | 380 BPM | 300 BPM |
| 60/10 | 600 BPM | 500 BPM | 400 BPM |
| (Capacities are approximate and depend on beverage type, carbonation level, and can size.) | |||
Advanced counter-pressure filling technology
Excellent carbonation retention and low foaming
Accurate filling and reliable seaming
Hygienic and food-safe machine design
Stable high-speed production performance
Easy operation and quick format changeover
Energy-efficient and low maintenance
Strong technical and after-sales support
