FREEION ENGINEERING Pvt. Ltd. offers advanced PET Bottle Juice Filling Lines designed for hygienic, high-speed, and reliable filling of fruit juices, flavoured drinks, nectar beverages, RTS drinks, and non-carbonated beverages.
FREEION Juice Filling Machines combine superior hygiene, filling accuracy, flexible bottle handling, and energy-efficient operation to deliver consistent product quality with low operating cost. Our systems are suitable for PET bottles and glass bottles and can efficiently handle both pulp and non-pulp beverages.
| Parameter | Specification |
|---|---|
| Machine Type | Rinser – Filler – Capper (RFC) |
| Application | Fruit Juice & Flavoured Beverages |
| Bottle Material | PET / Glass |
| Filling Method | Gravity / Flow Meter / Piston |
| Bottle Size Range | 200 ml – 2000 ml |
| Filling Temperature | Ambient / Hot Fill |
| Number of Filling Valves | 4 – 60 |
| Production Capacity | Up to 24,000 BPH |
| Cap Type | Screw Cap / ROPP |
| Product Contact Parts | SS316L |
| Machine Construction | SS304 |
| Control System | PLC with Touch Screen HMI |
| CIP Compatibility | Yes |
| Power Supply | 415V / 50Hz / 3 Phase |
| Specifications can be customized as per customer requirements. | |
| No. | Model (R/F/C) | 200 ml | 500 ml | 1000 ml | 2000 ml |
|---|---|---|---|---|---|
| 01 | 6/6/3 | 40 BPM | 30 BPM | 25 BPM | 12 BPM |
| 02 | 8/8/4 | 60 BPM | 50 BPM | 35 BPM | 18 BPM |
| 03 | 10/10/5 | 75 BPM | 65 BPM | 45 BPM | 22 BPM |
| 04 | 12/12/6 | 95 BPM | 75 BPM | 55 BPM | 28 BPM |
| 05 | 18/18/6 | 140 BPM | 120 BPM | 85 BPM | 42 BPM |
| 06 | 24/24/8 | 190 BPM | 170 BPM | 115 BPM | 58 BPM |
| 07 | 30/30/10 | 240 BPM | 190 BPM | 145 BPM | 72 BPM |
| 08 | 40/40/10 | 300 BPM | 240 BPM | 190 BPM | 95 BPM |
Freeion Juice Fillers Are Designed According to Modern Beverage Industry Hygiene Standards.
Freeion Juice Fillers Are Designed According to Modern Beverage Industry Hygiene Standards.
Freeion Juice Fillers Are Designed According to Modern Beverage Industry Hygiene Standards.
Freeion Juice Fillers Are Designed According to Modern Beverage Industry Hygiene Standards.
FREEION Juice Filling Machines are engineered to minimize Total Cost of Ownership (TCO).
Empty Bottles Enter the Rinsing Section Where They Are Cleaned Using Treated Water. Bottles Are Then Transferred to the Filling Section Where Juice is Filled Accurately Under Hygienic Conditions.After Filling, Bottles Move Automatically to the Capping Section for Secure Sealing Before Transferring to Labelling, Shrink Wrapping, Carton Packing, and Final Dispatch.
Advanced Beverage Filling Technology
Hygienic Food-Grade Construction
Accurate & Reliable Filling Performance
High-Speed Production Capability
Low Total Cost of Ownership
Easy Operation & Maintenance
Strong Technical & After-Sales Support
The syrup preparation system ensures accurate sugar dissolving and uniform Brix control.

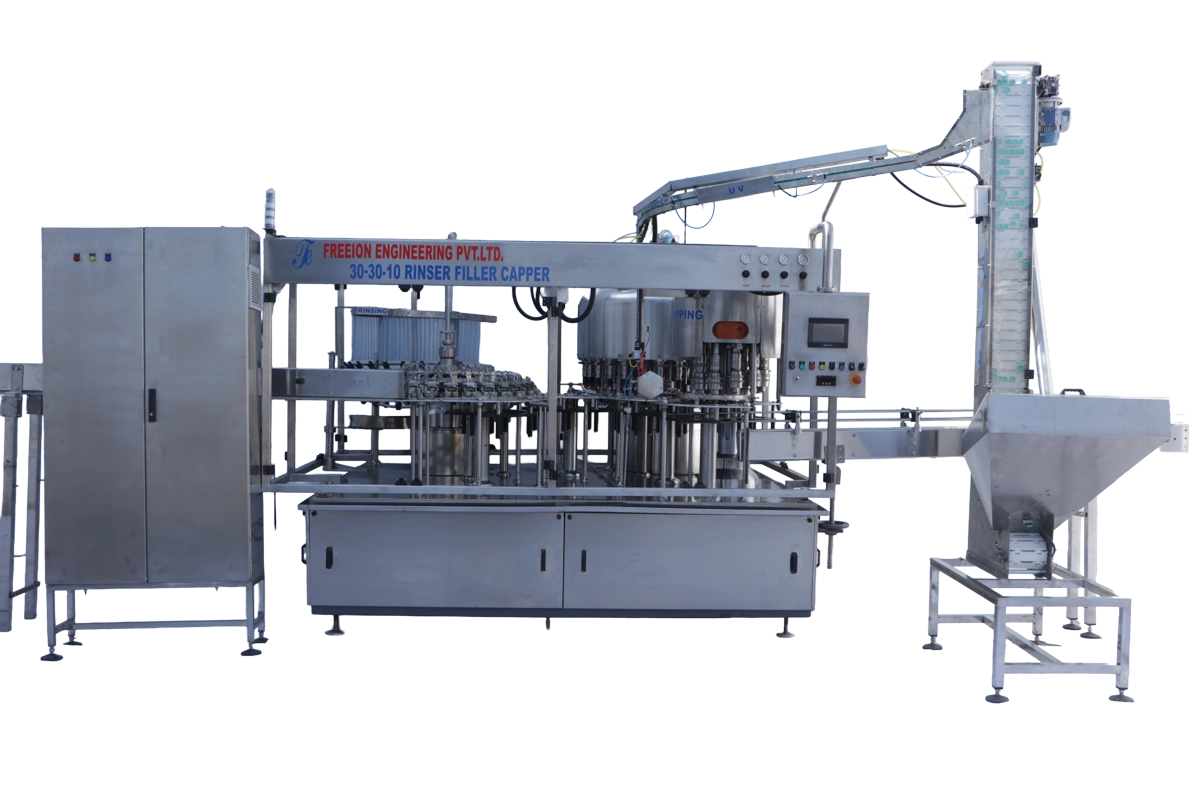

FREEION Juice Filling Machine combines rinsing, filling, and capping in one compact monoblock system.
FREEION Pasteurizers ensure food safety and longer shelf life.
FREEION CIP System provides automatic cleaning without dismantling equipment.
FREEION Beverage Preparation Tanks are used for blending juice, syrup, flavours, stabilizers, and additives.
FREEION Juice Processing System ensures hygienic and efficient preparation of juices and beverages.
FREEION Homogenizer improves beverage texture, stability, and mouthfeel.
