FREEION ENGINEERING Pvt. Ltd. offers advanced Beverage Carbonators specially designed for carbonated soft drinks (CSD), soda, sparkling water, flavoured beverages, and energy drinks.
FREEION Carbonators ensure accurate and stable mixing of CO₂ with chilled beverages, delivering consistent fizz, refreshing taste, and high product quality while maintaining hygiene, energy efficiency, and low operating cost.
Our carbonation systems are suitable for small, medium, and large beverage plants and can be easily integrated with syrup preparation systems, chillers, mixers, and CSD filling lines.
| Specification | Details |
|---|---|
| Machine Type | Beverage Carbonator |
| Application | CSD, Soda, Sparkling Water |
| Carbonation Level | Adjustable (as per product) |
| Capacity Range | 1,000 LPH – 20,000 LPH |
| Product Temperature | 0°C – 4°C (recommended) |
| CO₂ Pressure | As per product requirement |
| Mixing System | Carbonating Column |
| Material (Product Contact) | SS AISI 316L |
| CIP Compatibility | Yes |
| Control System | PLC with Touch Screen HMI |
| Power Supply | 415 V, 50 Hz, 3 Phase |
| Machine Operation | Fully Automatic |
| Maintenance | Low |
| Specifications can be customised as per customer requirement. | |
| No. | Model (R/F/C) | 200 ml | 500 ml | 1000 ml | 2000 ml |
|---|---|---|---|---|---|
| 01 | 6/6/3 | 40 BPM | 30 BPM | 25 BPM | 12 BPM |
| 02 | 8/8/4 | 60 BPM | 50 BPM | 35 BPM | 18 BPM |
| 03 | 10/10/5 | 75 BPM | 65 BPM | 45 BPM | 22 BPM |
| 04 | 12/12/6 | 95 BPM | 75 BPM | 55 BPM | 28 BPM |
| 05 | 18/18/6 | 140 BPM | 120 BPM | 85 BPM | 42 BPM |
| 06 | 24/24/8 | 190 BPM | 170 BPM | 115 BPM | 58 BPM |
| 07 | 30/30/10 | 240 BPM | 190 BPM | 145 BPM | 72 BPM |
| 08 | 40/40/10 | 300 BPM | 240 BPM | 190 BPM | 95 BPM |
FREEION carbonators provide stable and uniform carbonation for different beverage types.
Designed as per beverage industry hygiene standards.
Ensures maximum CO₂ absorption with minimum gas loss.
FREEION carbonators are designed to reduce operating costs.

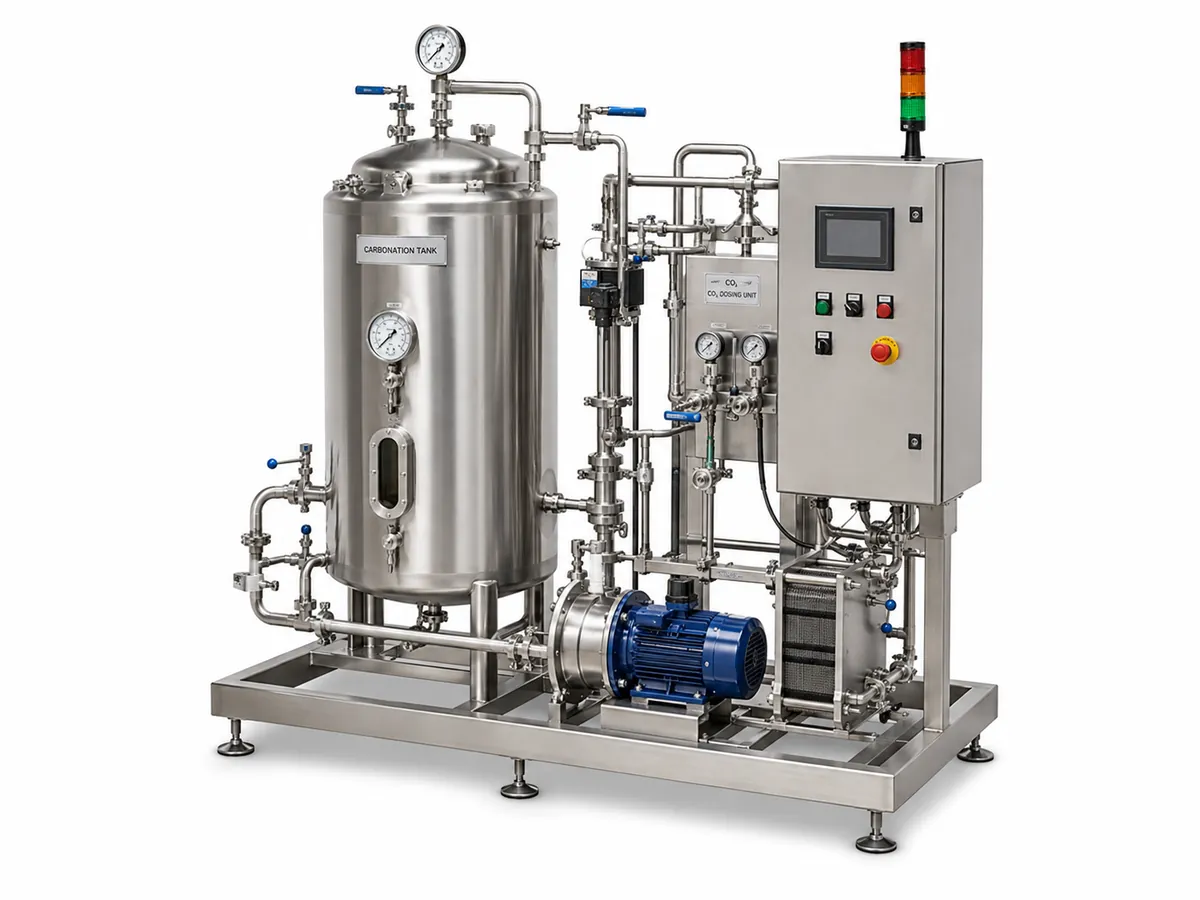

FREEION’s Carbonator is designed for efficient carbonation of beverages by precisely mixing chilled water or beverage with CO₂ under controlled pressure.
The system provides stable carbonation, better gas absorption, reduced foaming, and uniform beverage quality throughout production.
The beverage is first chilled to the required temperature and then transferred into the carbonator. Carbon dioxide (CO₂) is injected into the liquid under controlled pressure through a high-efficiency carbonating column.
The system ensures proper CO₂ absorption, stable carbonation levels, refreshing taste, and long-lasting fizz in every bottle.
| Model (R/F/C) | 250 ml | 300 ml | 500 ml |
|---|---|---|---|
| 12/12/6 | 60 BPM | 50 BPM | 40 BPM |
| 18/18/6 | 100 BPM | 85 BPM | 70 BPM |
| 24/24/8 | 150 BPM | 130 BPM | 100 BPM |
| 30/30/10 | 220 BPM | 180 BPM | 150 BPM |
| 40/40/10 | 300 BPM | 250 BPM | 200 BPM |
| 50/50/12 | 400 BPM | 320 BPM | 250 BPM |
| 60/60/15 | 500 BPM | 400 BPM | 320 BPM |
| (Capacities are approximate and depend on bottle size, carbonation level, and beverage type.) | |||
Consistent Carbonation & Taste
Hygienic Beverage Industry Design
Reliable Performance for Indian Conditions
Easy Operation & Maintenance
Energy-Efficient & Low Total Cost of Ownership
Smooth Integration with Beverage Processing Lines
Strong Technical & After-Sales Support
FREEION Carbonated Soft Drink Filling Machine is designed for safe, accurate, and high-speed filling of carbonated beverages such as soft drinks, soda, sparkling water, and flavoured fizzy drinks.
FREEION ENGINEERING Pvt. Ltd. offers advanced Beverage Carbonators specially designed for carbonated soft drinks (CSD), soda, sparkling water, flavoured beverages, and energy drinks.

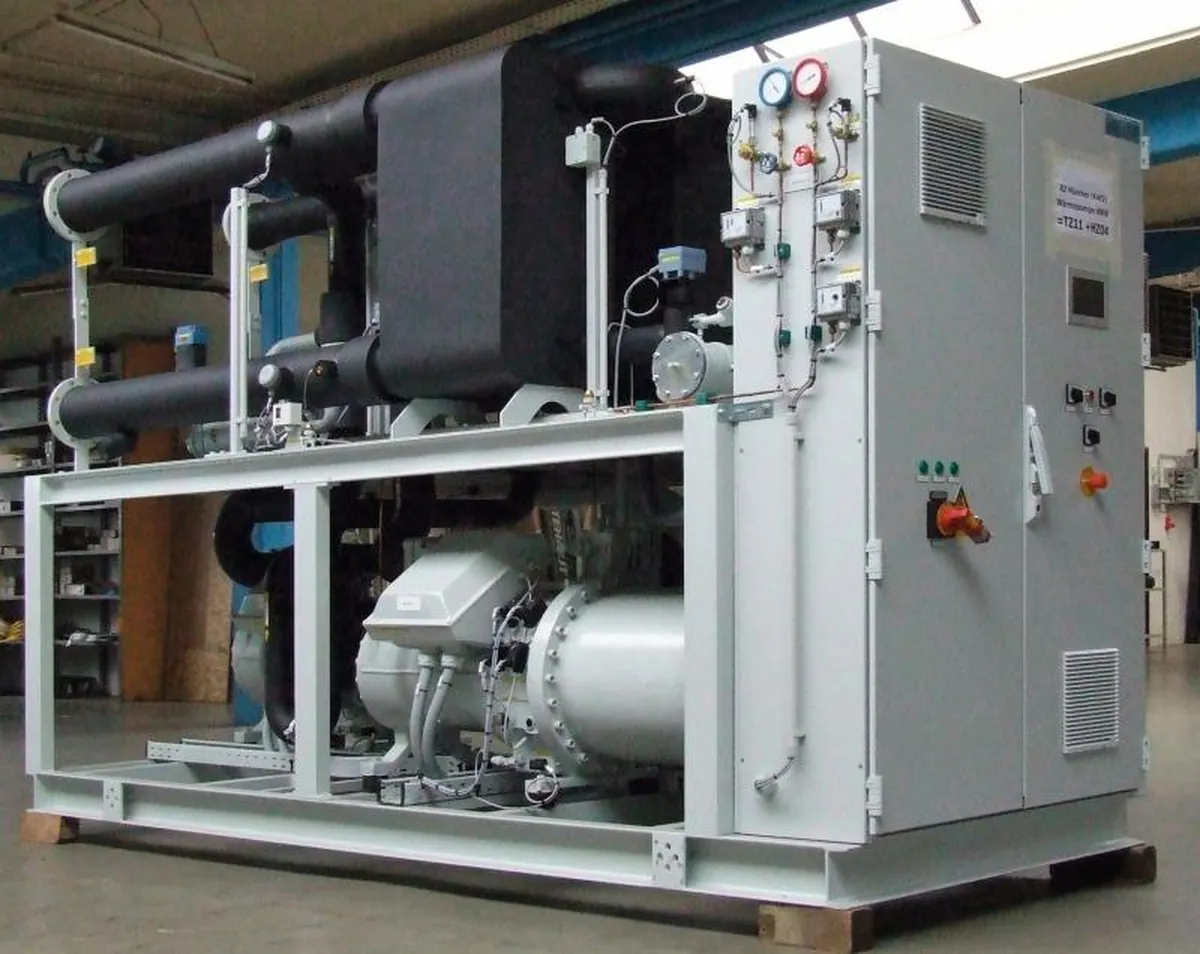

FREEION’s Glycol Chiller is specially designed for beverage carbonation systems where low product temperature is essential for proper CO₂ absorption and stable carbonation quality.
FREEION ENGINEERING Pvt. Ltd. delivers advanced Industrial and Commercial Reverse Osmosis (RO) Systems engineered to provide superior water purification performance with maximum operational reliability and optimized life-cycle costs.

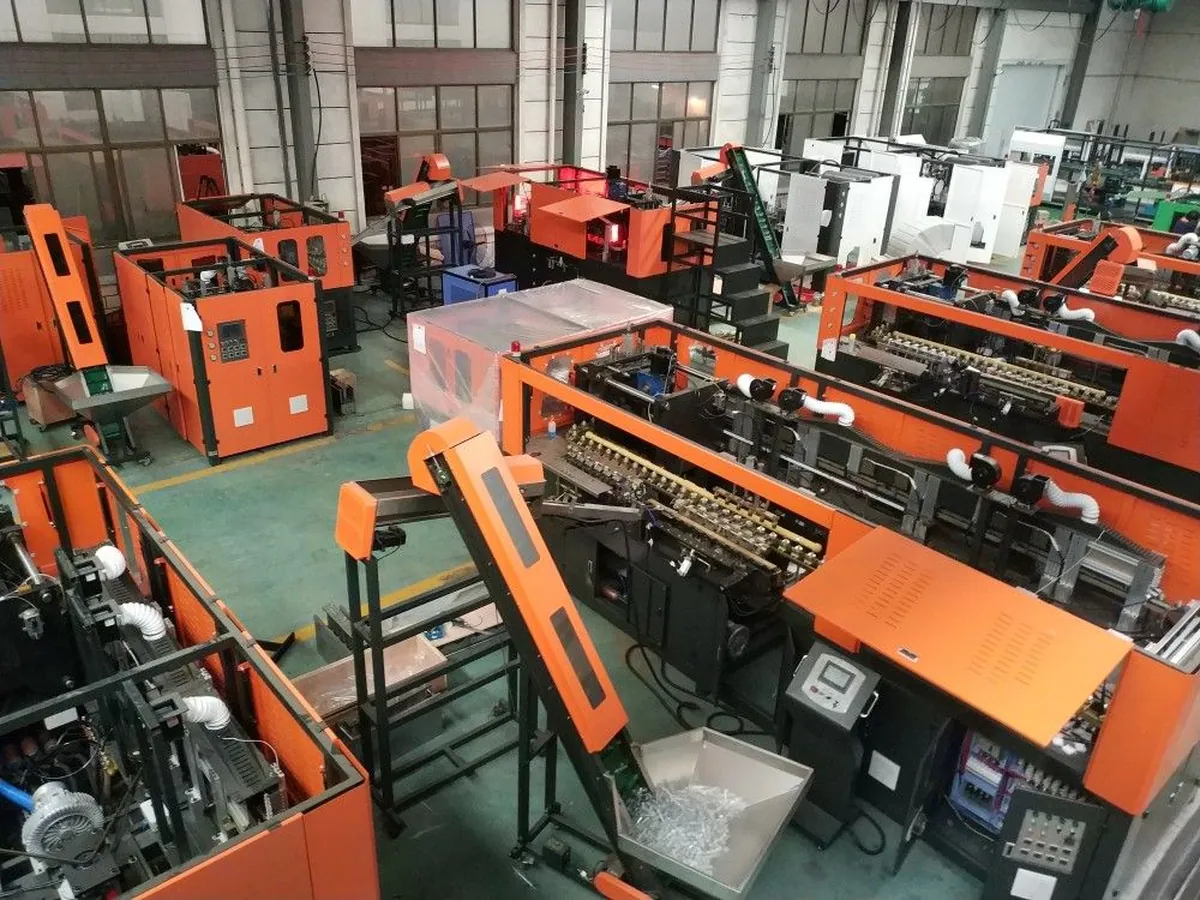

FREEION ENGINEERING Pvt. Ltd. offers advanced PET Bottle Stretch Blow Moulding Machines designed for high-speed, energy-efficient, and precision bottle manufacturing for packaged drinking water, soft drinks, juices, edible oil, dairy, and FMCG industries.
FREEION ENGINEERING Pvt. Ltd. offers advanced Shrink Sleeve Applicator Machines designed for high-speed, accurate, and premium-quality sleeve labeling applications across beverage, dairy, FMCG, and packaging industries.
FREEION ENGINEERING Pvt. Ltd. offers advanced BOPP Roll-Fed Labelling Machines designed for high-speed, accurate, and cost-effective bottle labeling applications in packaged drinking water, beverage, and FMCG industries.
FREEION ENGINEERING Pvt. Ltd. offers advanced Shrink Wrapping Machines designed for secure, attractive, and high-speed packaging of bottles, cans, cartons, trays, and multipack products for beverage, FMCG, dairy, pharmaceutical, and packaging industries.
FREEION ENGINEERING Pvt. Ltd. offers advanced Beverage Conveyor Systems designed for smooth, high-speed, and reliable product handling across beverage and packaging industries.
FREEION ENGINEERING Pvt. Ltd. offers advanced Batch Coding and Marking Solutions for industrial packaging applications across beverage, pharmaceutical, food, FMCG, and manufacturing industries.

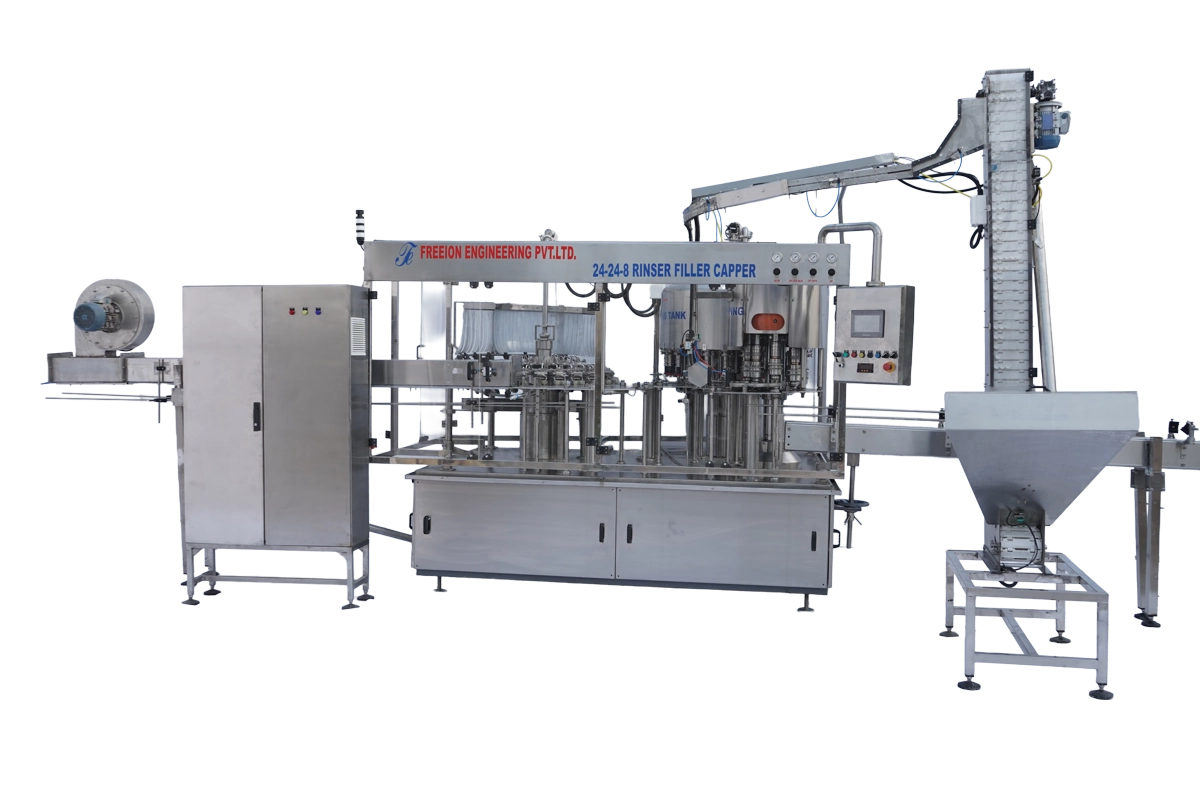

FREEION Glass Bottle Carbonated Soft Drink (CSD) Filling Machine is engineered for high-speed, hygienic, and reliable filling of carbonated beverages such as soft drinks, soda, sparkling water, energy drinks, and flavoured fizzy beverages in glass bottles.
