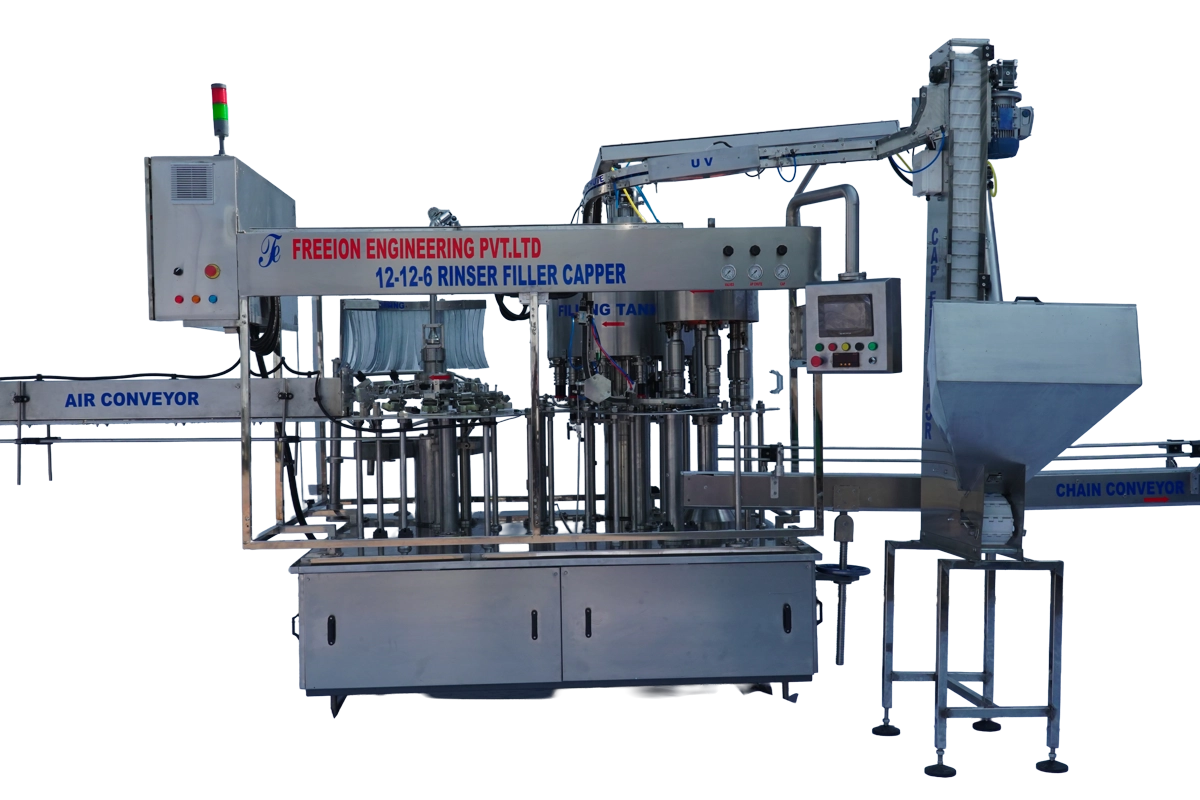

FREEION Glass Bottle Carbonated Soft Drink (CSD) Filling Machine is engineered for high-speed, hygienic, and reliable filling of carbonated beverages such as soft drinks, soda, sparkling water, energy drinks, and flavoured fizzy beverages in glass bottles.
Built with advanced counter-pressure filling technology, the machine ensures maximum CO₂ retention, low foaming, accurate filling levels, and excellent product quality even at high production speeds. The compact monoblock design integrates rinsing, filling, and capping into one efficient system, reducing footprint while improving production efficiency.
Designed for modern beverage plants, FREEION CSD fillers deliver superior hygiene, stable operation, low maintenance, and low total cost of ownership.
| Parameter | Specification |
|---|---|
| Machine Type | Glass Bottle CSD Filling Machine |
| Filling Method | Counter Pressure Filling |
| Application | Carbonated Soft Drinks, Soda, Sparkling Water |
| Bottle Material | Glass Bottles |
| Bottle Size Range | 200 ml – 1000 ml |
| Number of Filling Valves | 6 – 72 |
| Production Capacity | Up to 36,000 BPH |
| Cap Type | Crown Cap / Screw Cap |
| Product Contact Parts | SS AISI 316L |
| Machine Structure | SS304 |
| Control System | PLC with Touch Screen HMI |
| CIP Compatibility | Yes |
| Power Supply | 415 V / 50 Hz / 3 Phase |
| Machine Operation | Fully Automatic |
| Maintenance | Low |
| No. | Model (R/F/C) | 200 ml | 500 ml | 1000 ml | 2000 ml |
|---|---|---|---|---|---|
| 01 | 6/6/3 | 40 BPM | 30 BPM | 25 BPM | 12 BPM |
| 02 | 8/8/4 | 60 BPM | 50 BPM | 35 BPM | 18 BPM |
| 03 | 10/10/5 | 75 BPM | 65 BPM | 45 BPM | 22 BPM |
| 04 | 12/12/6 | 95 BPM | 75 BPM | 55 BPM | 28 BPM |
| 05 | 18/18/6 | 140 BPM | 120 BPM | 85 BPM | 42 BPM |
| 06 | 24/24/8 | 190 BPM | 170 BPM | 115 BPM | 58 BPM |
| 07 | 30/30/10 | 240 BPM | 190 BPM | 145 BPM | 72 BPM |
| 08 | 40/40/10 | 300 BPM | 240 BPM | 190 BPM | 95 BPM |
FREEION CSD fillers are specially designed for carbonated beverages using advanced counter-pressure filling systems.
Features:
Benefits:
The machine is designed according to modern beverage industry hygiene standards.
Features:
Benefits:
FREEION filling machines are built for continuous and reliable production.
Features:
Benefits:
The machine is specially designed for safe glass bottle handling.
Features:
Benefits:
Safe handling of lightweight bottles
FREEION machines support multiple bottle formats and cap types.
Features:
Benefits:
The machine is designed for simple operation and maintenance.
Features:
Benefits:
FREEION CSD fillers are designed to reduce operating cost and improve sustainability.
Energy Saving:
Maintenance Saving:
Water & Product Saving:
Empty Bottles Enter the Rinsing Section Where They Are Cleaned Using Treated Water. Bottles Are Then Transferred to the Filling Section Where Juice is Filled Accurately Under Hygienic Conditions.After Filling, Bottles Move Automatically to the Capping Section for Secure Sealing Before Transferring to Labelling, Shrink Wrapping, Carton Packing, and Final Dispatch.
| Model (R/F/C) | 250 ml | 300 ml | 500 ml |
|---|---|---|---|
| 12/12/6 | 60 BPM | 50 BPM | 40 BPM |
| 18/18/6 | 100 BPM | 85 BPM | 70 BPM |
| 24/24/8 | 150 BPM | 130 BPM | 100 BPM |
| 30/30/10 | 220 BPM | 180 BPM | 150 BPM |
| 40/40/10 | 300 BPM | 250 BPM | 200 BPM |
| 50/50/12 | 400 BPM | 320 BPM | 250 BPM |
| 60/60/15 | 500 BPM | 400 BPM | 320 BPM |
| (Capacities are approximate and depend on bottle size, carbonation level, and beverage type.) | |||
Advanced counter-pressure filling technology
Excellent carbonation retention and low foaming
Hygienic and food-safe machine design
Reliable operation for Indian production conditions
Stable high-speed performance
Easy operation and quick format changeover
Energy-efficient and low maintenance
Strong technical and after-sales support
FREEION Carbonated Soft Drink Filling Machine is designed for safe, accurate, and high-speed filling of carbonated beverages such as soft drinks, soda, sparkling water, and flavoured fizzy drinks.
